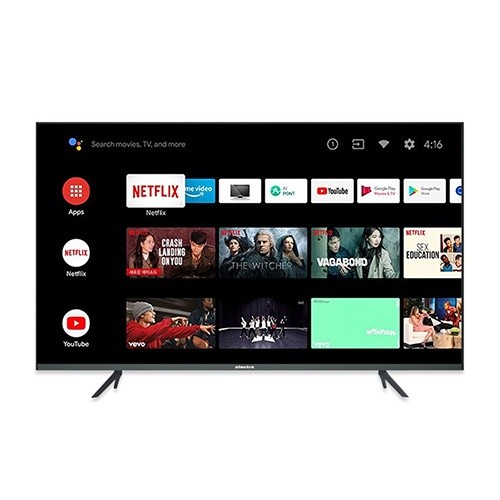

Electra Google LED TV 43″ | EL43AR25SMT

1.Panel spec (The panel parameters will be somewhat different between different OC, please refer to the corresponding panel specification.)

Size

42.51" diagonal

Backlight

DLED direct Type

Maximum resolution

3840×2160

Contrast ratio (Typ)

1100:1

Response time(Typ)

6ms

Display scale

16:09

Viewing angle(CR>10)

Typ(H:178°,V:178°)

Display Colors

1.07 B

Color Gamut(NTSC)

≥NTSC 68%

LCM Center Luminance of White

Min:220cd/m2;Typ:260cd/m2

Local dimming

Nonsupport

Uniformity of Luminance

≥75%

2.Hardware Information

ATV

PAL SECAM

DTV

DVB-T/T2/S/S2

CPU Frame

ARM Cortex-A55/1.53GHz/Quad core

GPU

Mail-G52MC1/Dual core

RAM(DDR)

2GB

ROM(Flash)

16GB

Audio power(Output)

10W+10W

WIFI(Type)

2T2R

Tuner type

IEC,screw-thread

USB 2.0

2

USB 3.0

-

VGA

-

AV In

1(mini)

YPbPr In

-

CI

optional

PC Audio

-

RJ-45

1

Earphone

-

Audio In

-

Audio Out

1

Video Out

-

SPDIF Out

optical

Bluetooth(Version)

5.1

HDMI

3

Others

-

3.Software Function

Channel list

YES

Channel edit

YES

Picture freezing

NO

MTS/NICAM

YES

Sleep time setting

YES

Teletext

YES

PVR

YES

V_CHIP/Parental Guidance

YES

CC(Closed caption)

YES

AD(Audio description)

NO

CI+

NO

DOLBY

YES

HDMI-ARC

YES

HDMI-CEC

YES

HDMI-MHL

NO

Operation system

Android 14

OTA

YES

Hotel mode

YES

EPG

YES

TTS(Text to Speech)

YES

4.Structure Information

Base model name

BCGA-43A Curved Knife Fixed Plastic Base

Size (without stand) L×W×H

957×87×559mm

Size (with stand) L×W×H

957×258×614mm

Size (carton) L×W×H

1060×126×636mm

Net Weight (without stand)

7.2kg

Net Weight (with stand)

7.4kg

Gross Weight (without stand)

9.1kg

Gross Weight (with stand)

9.3kg

Size (Wall hanging)

300×300mm

5.Power Management&Safety&Certificate

Power input

100-240VAc

Fire rating

UL94-HB75

Standby power

≤0.5W

Rated power

110W

Working condition

Temperature：5℃～40℃ humidity：20%～80% atmosphere：86KPa～106KPa

Storage condition

Temperature：-20℃～55℃ humidity：20%～80% atmosphere：86kPa～106kPa

6.Accessory

Stand(Optional)

1PCS

Remote control

1PCS

Instruction

1PCS

Warranty card(Optional)

1PCS
